HIGH TONNAGE LOCKING COLLAR CYLINDERS SPECIFICATIONS

Model Number	Cylinder Capacity (t-kN)	Stroke (mm)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Weight (kg)
RSLC-502	50t - 496kN	50	164	214	125	15
RSLC-504	50t - 496kN	100	214	314	125	20
RSLC-506	50t - 496kN	150	264	414	125	25
RSLC-1002	100t - 929kN	50	187	237	165	30
RSLC-2002	200t - 1859kN	50	243	293	235	83
RPLC-1602	160t - 1619kN	45	148	193	220	44
RPLC-2002	200t - 1999kN	45	155	200	245	57
RPLC-2502	250t - 2567kN	45	159	204	275	74
RPLC-602	60t - 606kN	50	125	175	140	15

SINGLE ACTION LOW PROFILE SPECIFICATIONS

Model Number	Cylinder Capacity (t-kN)	Stroke (mm)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Weight (kg)
RLP-501	10t - 191kN	38	88	126	69	4.1
RLP-201	20t - 201kN	45	98	143	92	5.0
RLP-302	30t - 295kN	62	117	179	101	6.8
RLP-502	50t - 435kN	60	122	182	124	10.9
RLP-1002	100t - 887kN	57	141	198	165	22.7

SINGLE ACTION CYLINDER SPECIFICATIONS

Model Number	Cylinder Capacity (t-kN)	Stroke (mm)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Weight (kg)
RG-50	5t - 45kN	16	41	57	58	1.0
RG-101	10t - 101kN	26	89	115	57	1.8
RG-251	25t - 232kN	26	139	165	85	5.9
RG-502	50t - 498kN	51	176	227	127	15.0
RG-1004	100t - 933kN	102	205	306	177	33.1
RJ-1502	150t - 1407kN	50	200	250	215	50
RG-156	15t - 142kN	152	271	423	69	6.8

COMPACT FLAT CYLINDER SPECIFICATIONS

Model Number	Cylinder Capacity (t-kN)	Stroke (mm)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Weight (kg)
RFJ-50	5t - 45kN	6	32	38	58 x 41	1.0
RFJ-200	20t - 201kN	11	58	71	101 x 76	3.1
RFJ-500	50t - 435kN	16	66	82	140 x 114	6.8
RFJ-1000	100t - 887kN	16	85	101	178 x 153	14.5
RFJ-1500	150t - 1386kN	16	100	116	215 x 190	26.3

Hydraulic Jacks

Download Technical Brochure

Description

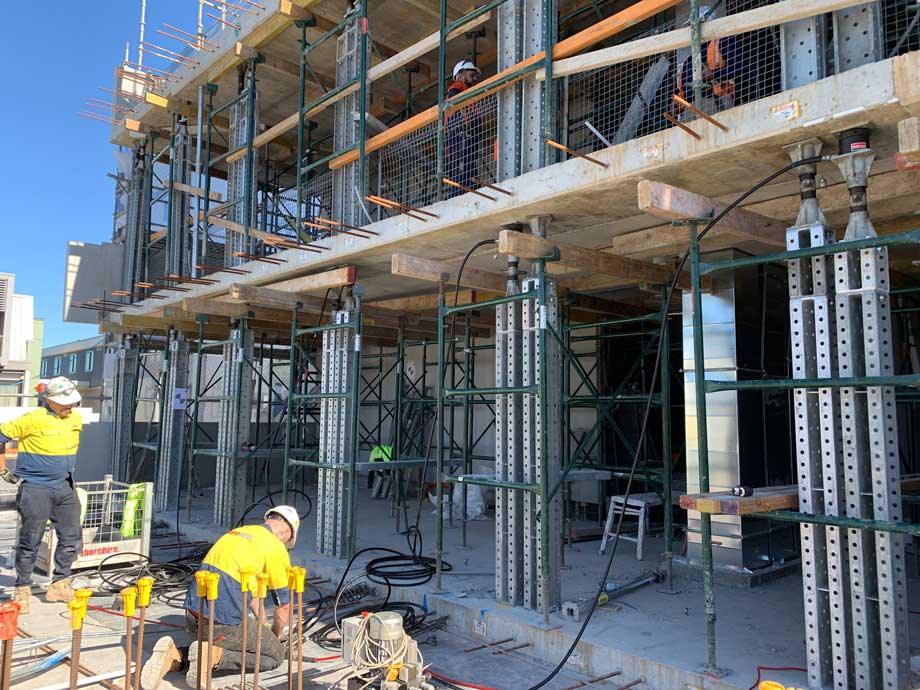

Shore Hire provide a complete turnkey solution for any projects requiring hydraulic jacking. Our hydraulic jack range is often used in tandem with our temporary propping solutions, and Shore Hire’s on-site hydraulic jacking team are nationally recognised as the experts in the hydraulic jacking space.

Whether you require lifting solutions for heavy construction equipment, industrial machinery, or infrastructure projects, Shore Hire’s range of hydraulic jacks is designed to deliver reliable and precise lifting performance from compact and portable options for on-the-go tasks to robust and heavy-duty models suitable for demanding industrial projects.

Our experienced team of engineers will provide a detailed design & the Hydraulic lift will be carried out by our team of qualified riggers. Shore Hire also provides technical backup, load monitoring & servicing prioritising safety at all times.

Features

Huge range of different cylinders to suit any jacking job
High Working Load Limit (WLL) with a huge range of sizes to suit any application
Experienced and dedicated on-site team to assist with the controlled lift or descent and give you full peace of mind
Range of accessories available to suit various applications
Compatible with a range of other Shore Hire propping products for full flexibility and maximum strength
Technical product experts and engineers at your service to step you through the process on-site so you have full peace of mind
